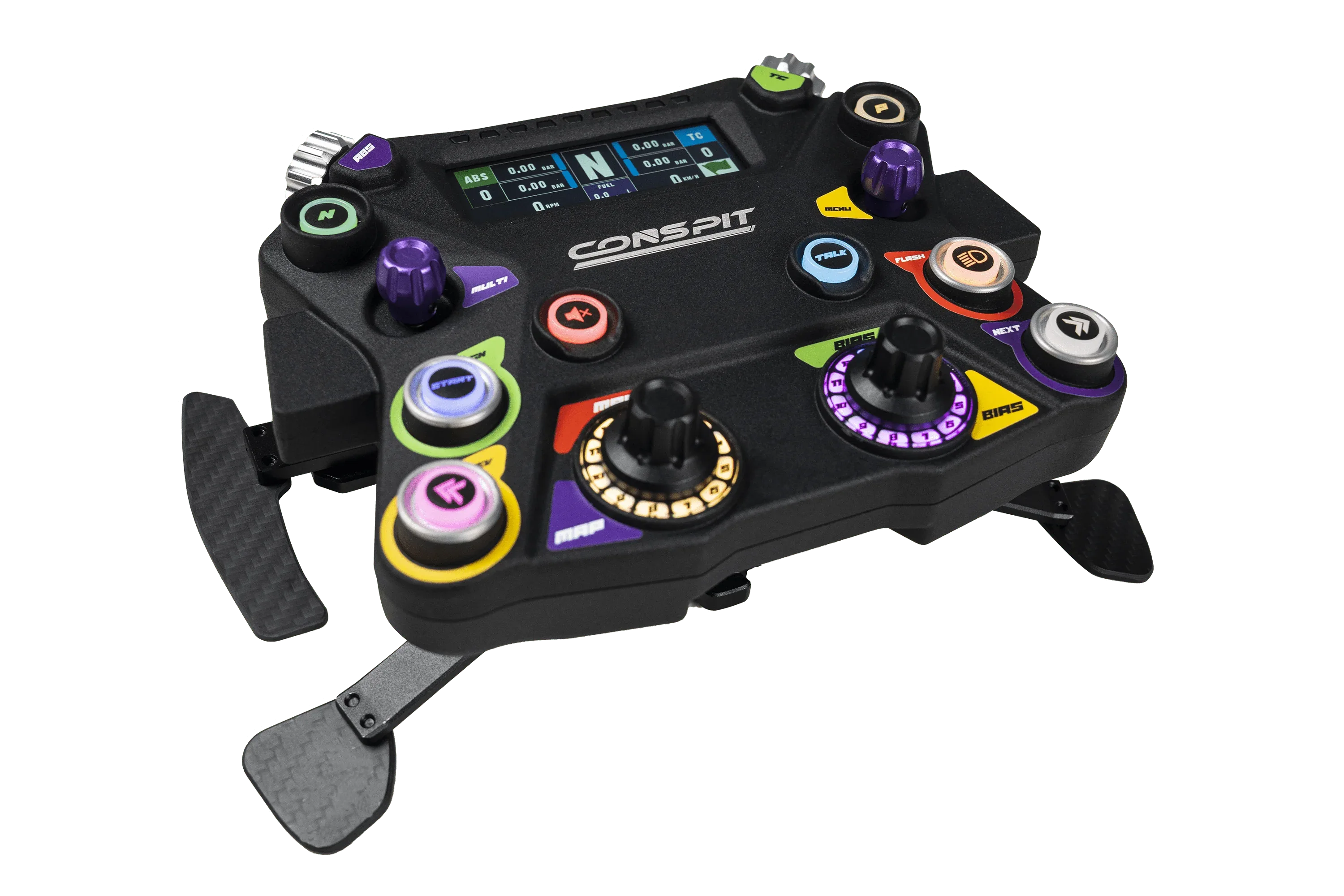

Full Aluminum Alloy Structure - Robust Yet Lightweight
The front and rear housings are precision-crafted from die-cast aluminum alloy, achieving optimal weight reduction, rigidity, and vibration damping. Enhanced acoustic and haptic feedback ensures an immersive driving experience.
- Improve the feel
- More durable
- Maintenance free

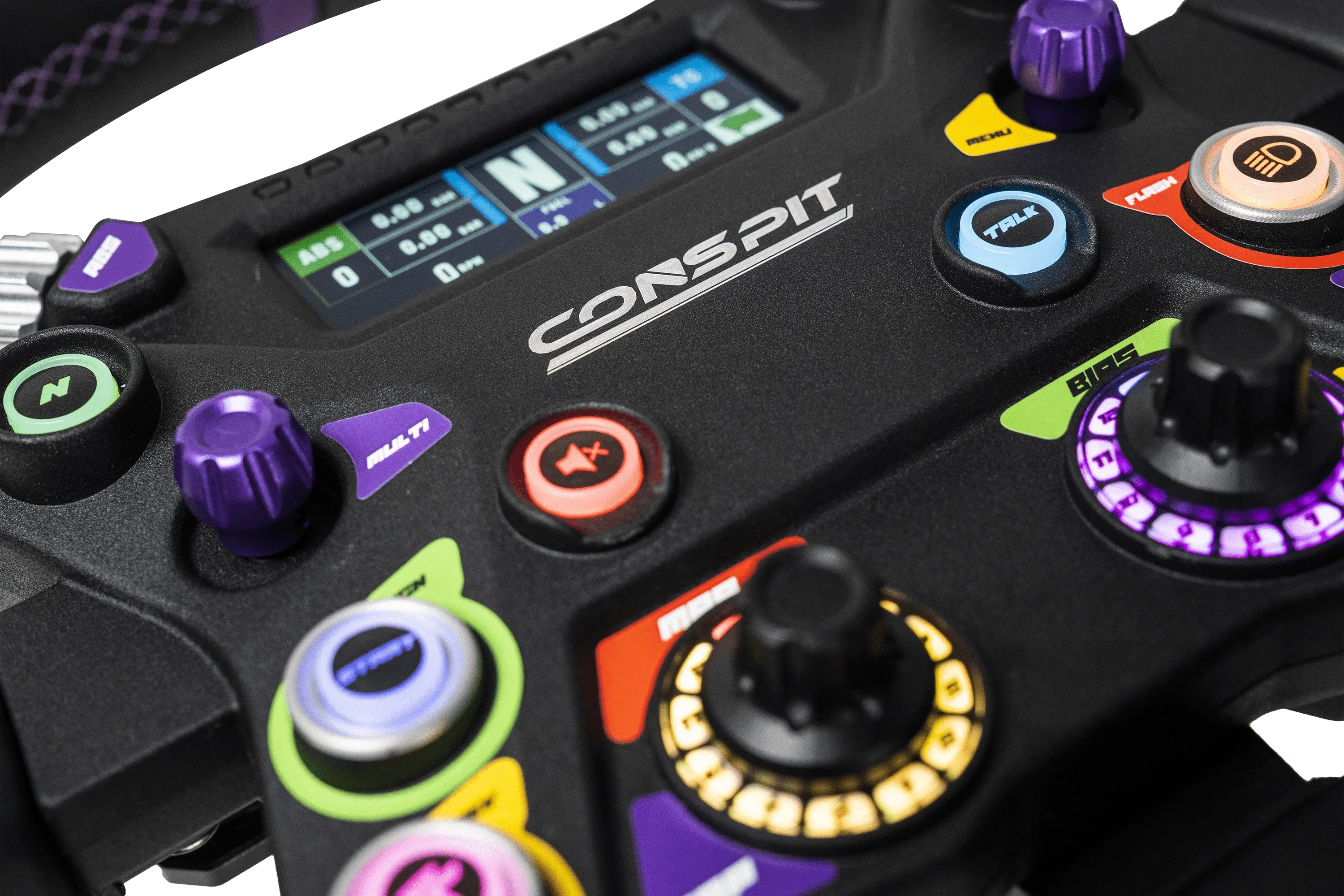

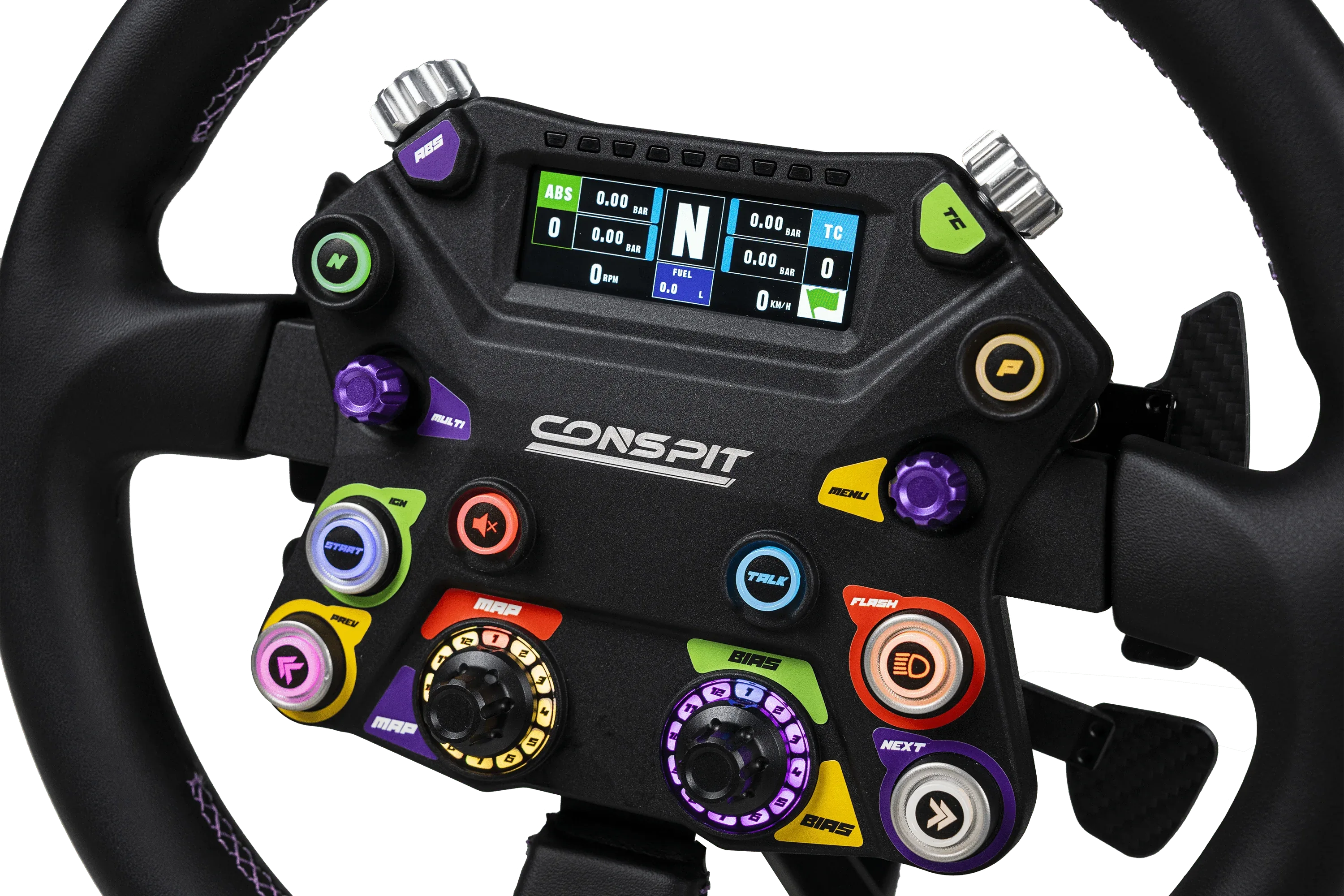

3D Front Panel - Where Design Meets Function
Leveraging the flexibility of aluminum alloy casting, the 310 APEX features a contoured 3D front panel that follows CONSPIT’s hardware ecosystem design language. Its ergonomic layout provides intuitive access to controls for superior handling.

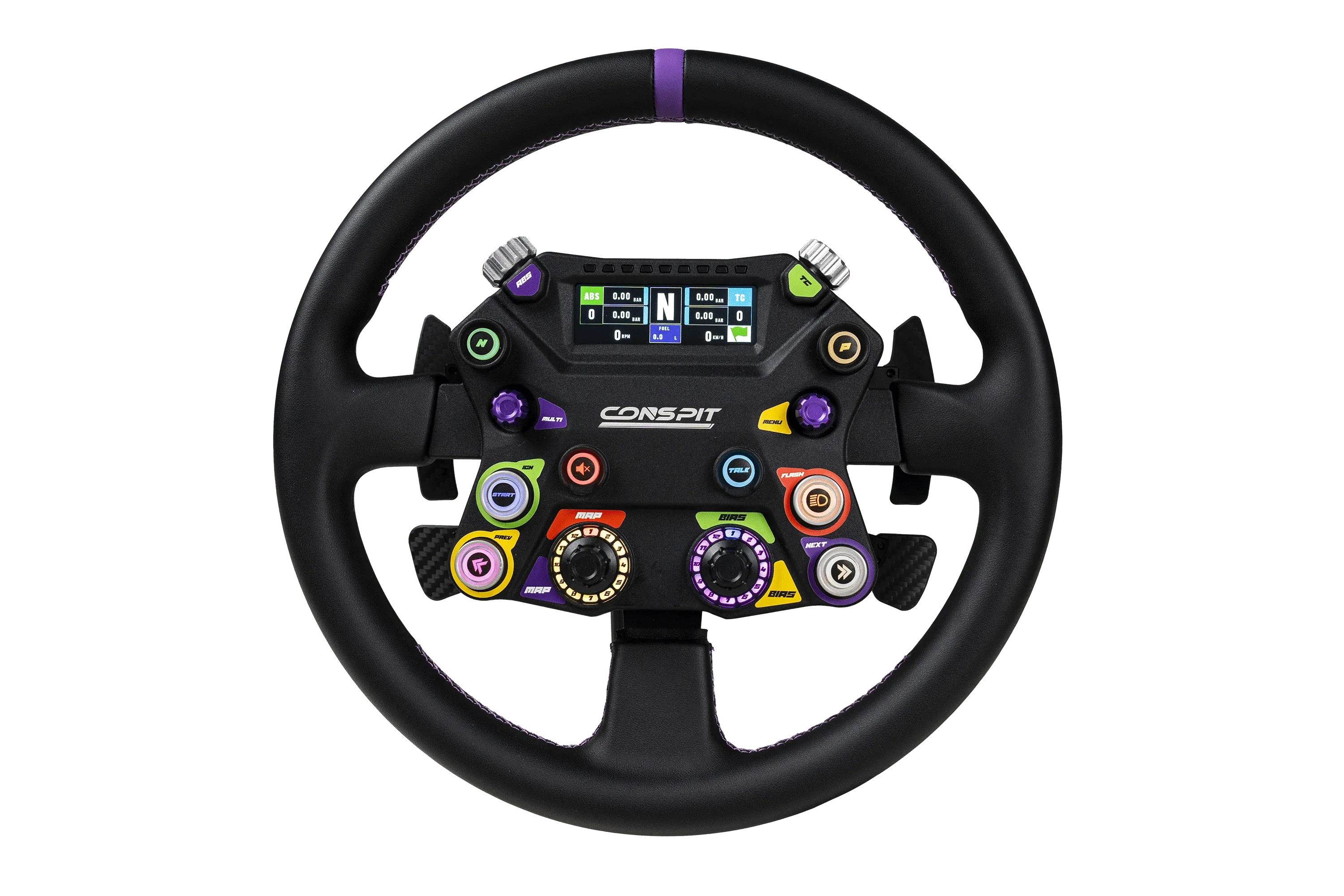

Standard Synthetic Leather Rim - Comfort & Durability
Made from wear-resistant eco-friendly microfiber, the rim features seamless stitching at the grip zones, accented with purple stitching and a center alignment marker for long-lasting comfort and precision.

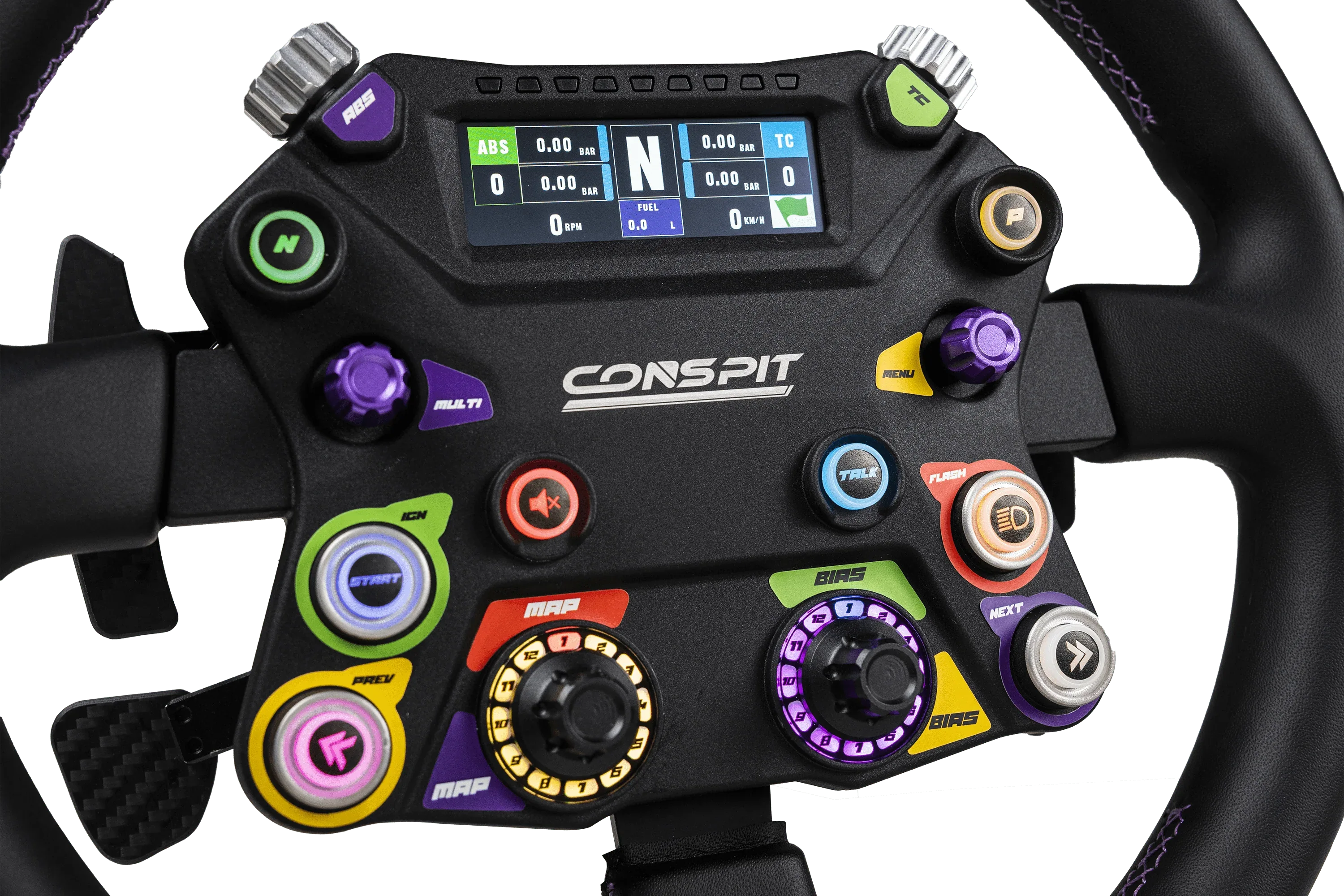

Pro-Level Controls - 104 Fully Customizable Inputs
Equipped with encoder remapping, the wheel supports up to 104 independent inputs, meeting the demands of competitive sim racing. Future firmware updates will expand functionality, including rotary macro mapping.
8 Customizable RGB Buttons - Tactile & Responsive
With 500g actuation force and short-throw feedback, these buttons deliver crisp inputs. Full RGB lighting works with CONSPIT Link 2.0 and SimHub for dynamic telemetry visualization.

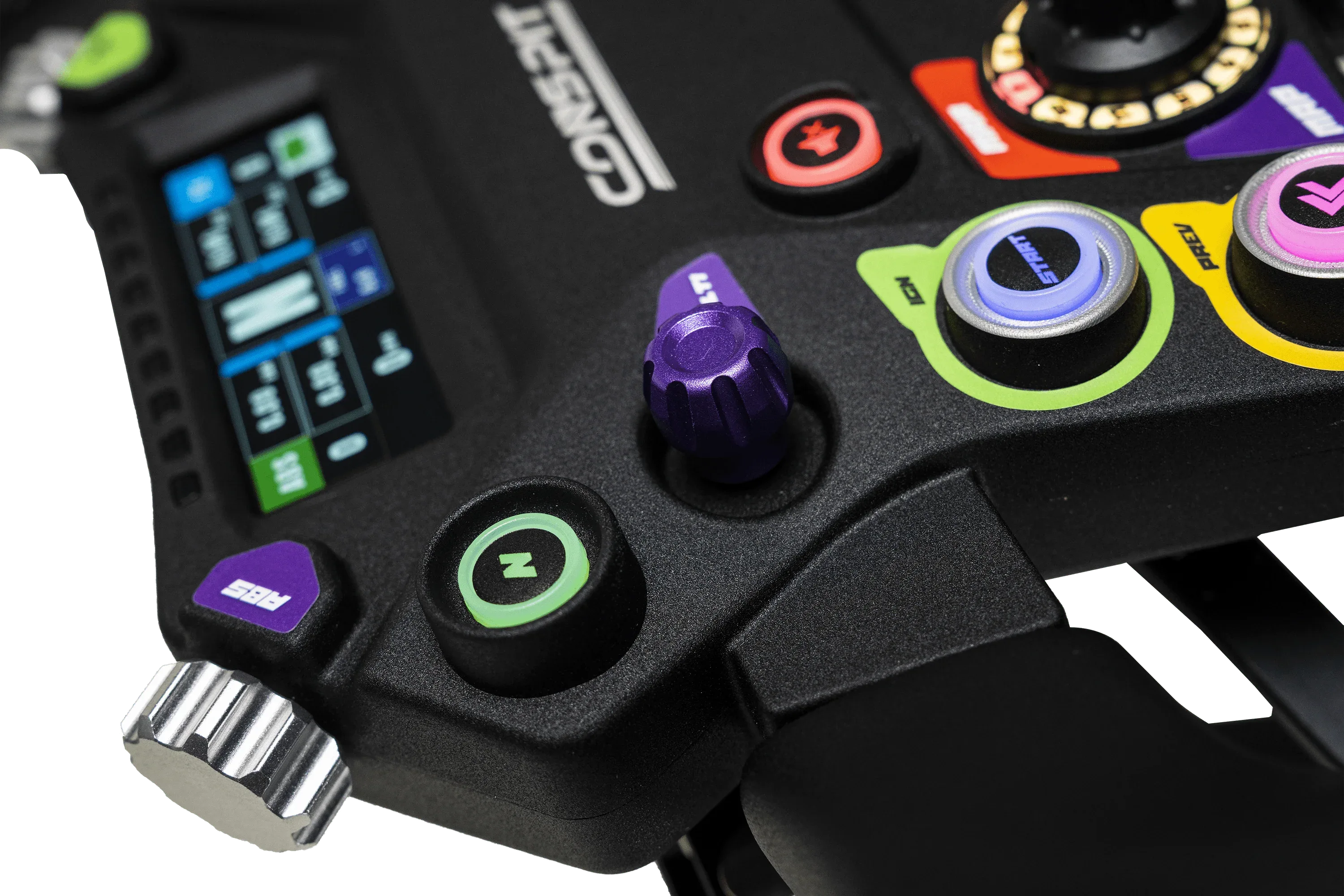

2 Programmable Encoder Dials - Versatile Input Options
Strategically placed for thumb operation, each dial supports 24 input combinations via remapping, offering extensive in-car adjustment flexibility.
2 Funky Switches - Multi-Function Control
A sim racing essential, each physical button can be assigned up to 7 different commands for efficient control.

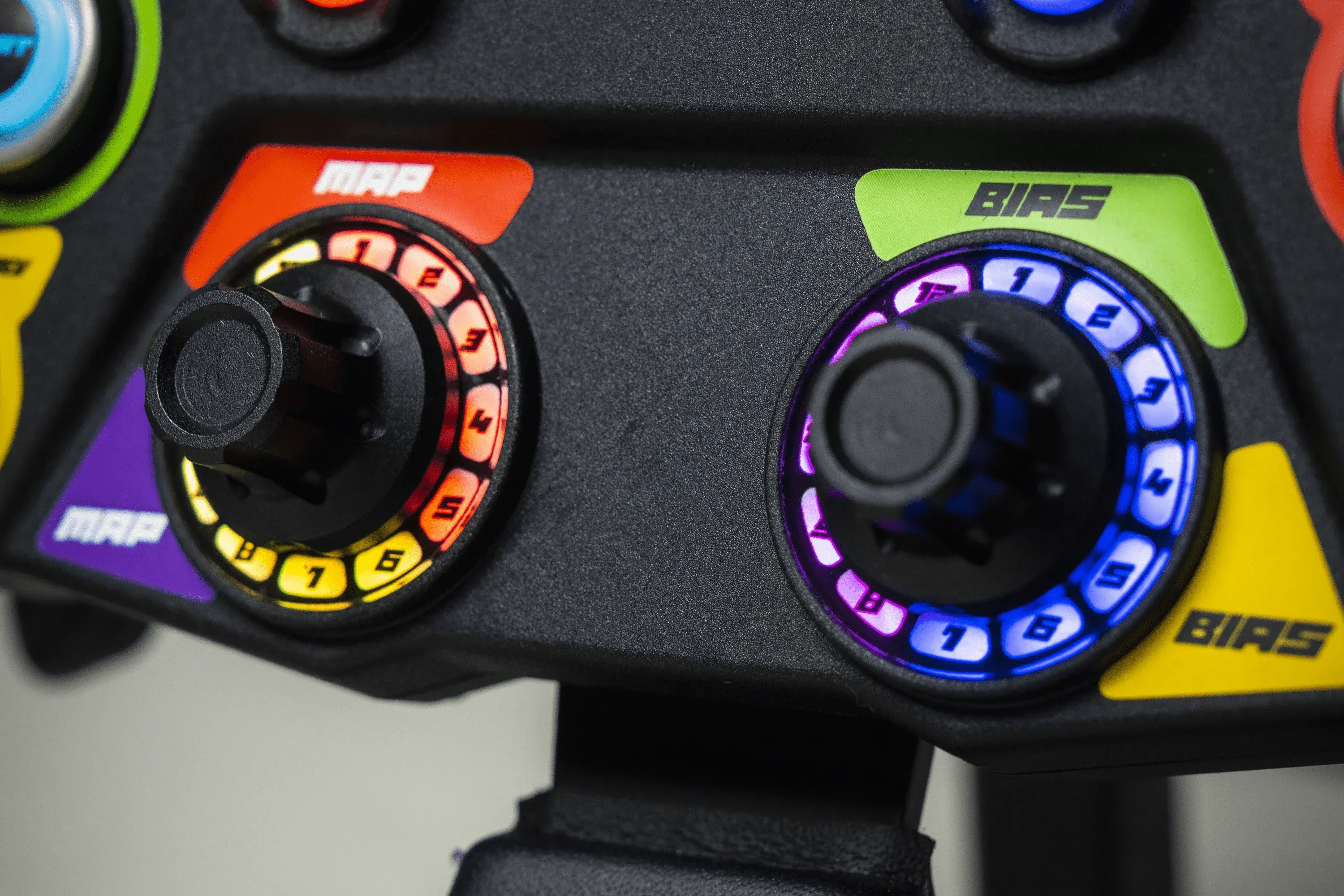

Dual-Mode Rotary Encoders - Incremental & Absolute
Two 12-step rotary knobs allow seamless switching between incremental (+/-) and absolute positioning modes via software. Each step features RGB backlighting for clear visibility.

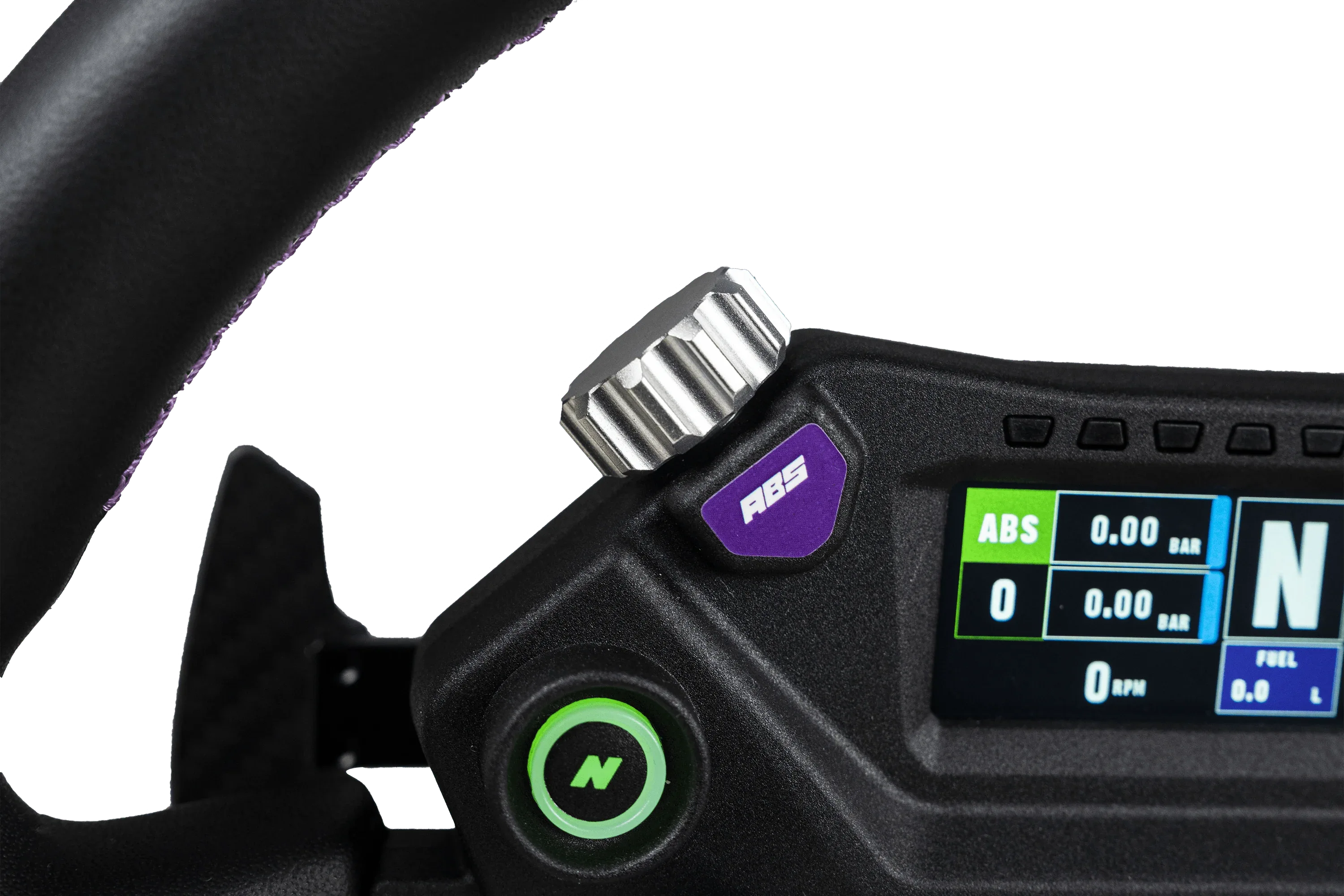

2.99" Built-In LCD Display - Real-Time Telemetry
CONSPIT’s self-developed screen supports 7 customizable dash pages for critical racing data, with more layouts coming via updates.
Specifications
| Product Name | 310 APEX |
|---|---|
| Main Material | Aluminum Alloy, Steel |
| Product Dimensions | 310x310x89 mm |
| Net Weight | 1520 g (Including wheel rim, excluding QR/adapter) |
| Dashboard | 2.99" 800*268 color display |
| Indicators | 33 x RGB LEDs (9 Rev Lights, 24 Knob Lights) |
| RGB Buttons | 8 x |
| Encoder Wheels | 2 x |
| Rotary Switches | 2 x 12-position |
| 7-way Joysticks | 2 x |

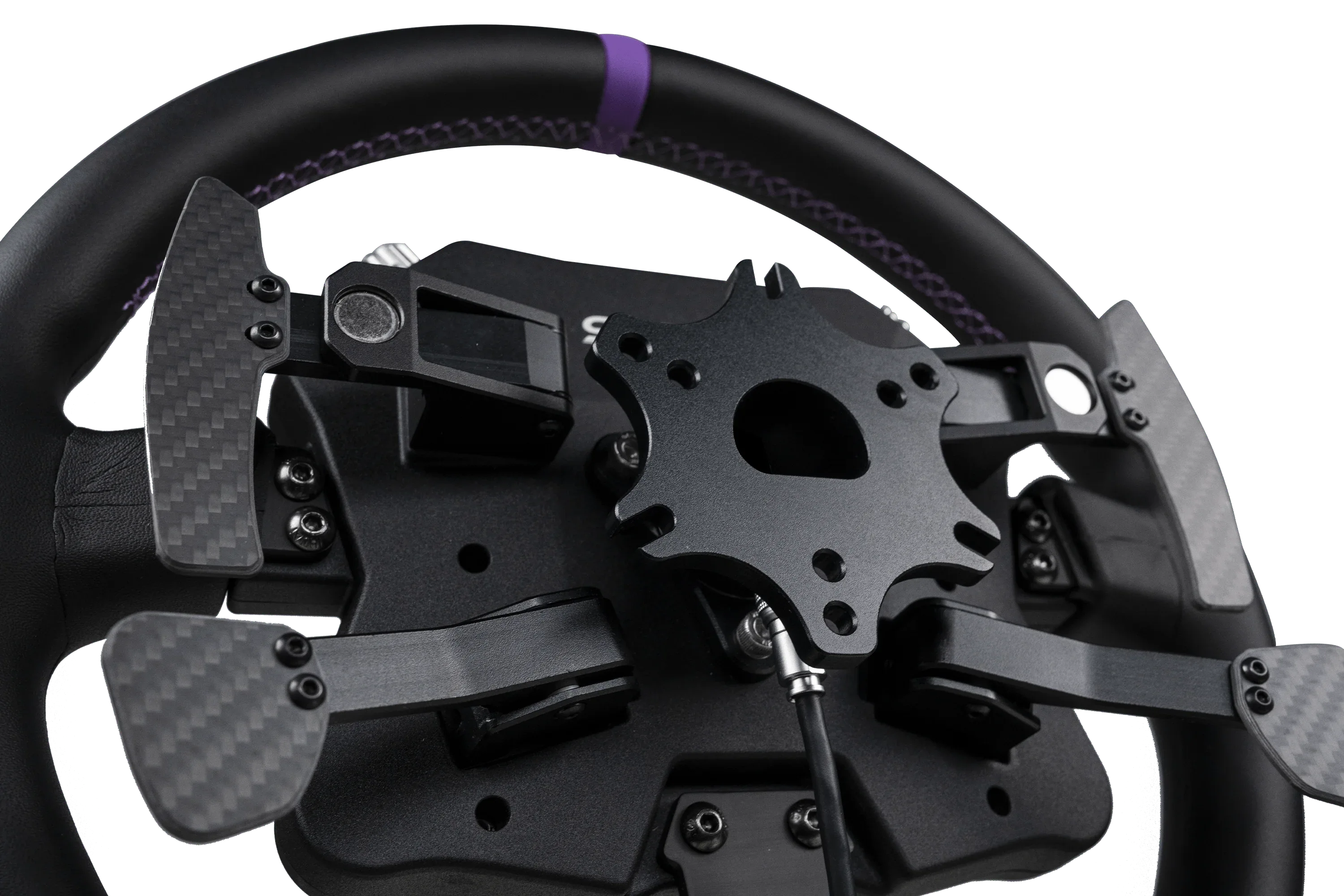

| Clutch Paddles | 2 x modular Hall sensored clutch paddles |
| Shift Paddles | Silent magnetic Hall sensored shift paddles |
| Platform | Windows PC |
| Connection | USB direct, CONSPIT CAN |
| Software | SimHub (RGB) + Conspit Link 2.0 |
* The rendered image may differ from the actual product and is for reference only.
